SPECTROSCOPY PROBES
OPTICAL VACUUM FEEDTHROUGHS AND MORE
High Temperature Reflection probe (650°C max)
Reflection probes are used to measure reflection from surfaces, solid substance,
moistures and powders. In this composition of the probe end for reflection
measurements the read fiber (signal collection fiber) is located in the center of a
ring of Six illumination fibers.
| Product information | |
| Fiber core: | 400um copper coated fiber |
| Numerical Aperture Na.: | 0,22 |
| Fiber construction: | Six around One |
| Connection: | SMA 905 connectors |
| Protection: | Stainless Steel protection sleeve |
| Barrel: | Stainless Steel 316 (1/4") 6,35x200mm |
| Operating temperature: | -50°C to +650°C |
Rugged Reflection probe
This rugged Reflection Probe can be used for online process control of bulk
goods, pastes, powders or compositions of cement, sand, gravel etc.The probes
are available with Stainless Steel and Hastelloy barrel and special Sapphire
window, the probe is extremely rugged and durable without a loss of sensitivity.
| Product information | |
| Fiber core: | 12 x 200 / 1 x 600um |
| Numerical Aperture Na.: | 0,22 |
| Fiber construction: | Twelve around One |
| Connection: | SMA 905 connectors |
| Protection: | Stainless Steel protection sleeve |
| Barrel: | Stainless Steel 303/316 (1/2") 12,7x200mm |
| Operating temperature: | -50°C to +650°C |
| Optical material: | Sapphire window |
ATR probe
The ATR "Attenuated Total Reflection" probe has been specially designed for
measurements in highly absorbing solutions, where normal transmission dip
probes can not be used. This probe has a sapphire ATR lens that can be
immersed directly into the measuring liquid.
| Product information | |
| Fiber core: | 600um |
| Numerical Aperture Na.: | 0,22 |
| Fiber construction: | 2 x 600um |
| Connection: | SMA 905 connectors |
| Protection: | Stainless Steel protection sleeve |
| Barrel: | Stainless Steel 316 (1/2") 12,7x200mm |
| Operating temperature: | -50°C to +650°C |
| Optical material: | Sapphire lenses |
| Sealing: | Viton |

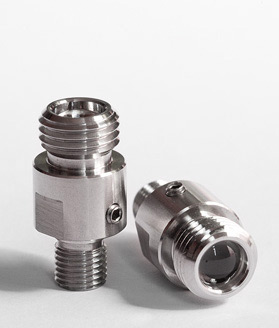

Collimating lens assembly FW-COL-01
with (adjustable distance between the lens and connector tip)
Material: Stainless Steel 303 / Deep UV Fused Silica (180nm/2000nm)
Thread: UNF 3/8-24 external thread and UNS 1/4-36 for 905/906 SMA
connection: Other connection available
Temperature: 100°C

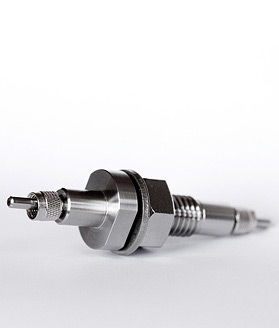

Optical Vacuum Feedthrough FW-501-UV600
with Stainless Steel M12 body.
Connectors: SMA-905
With other connectors available
Temperature: 100°C up to 350°C
also available
Pressure: 10-10 Torr (mmhg)

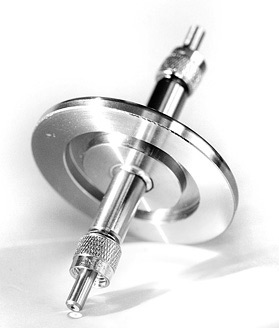

Optical Vacuum Feedthrough FW-OVAC-KF25
with KF25 Stainless Steel Flange.
Material: Stainless Steel 316
Connectors: SMA-905
Temperature: 200°C up to 500°C
also available
Pressure: 10-10 Torr (mmhg)

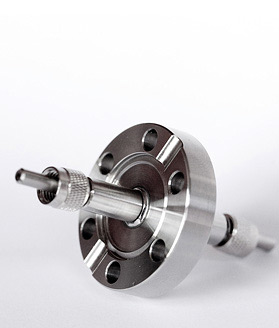

Optical Vacuum Feedthrough FW-OVAC-F16
with F16 Stainless Steel Flange.
Material: Stainless Steel 316
Connectors: SMA-905
Temperature: 200°C up to 500°C also available
Pressure: 10-10 Torr (mmhg)
